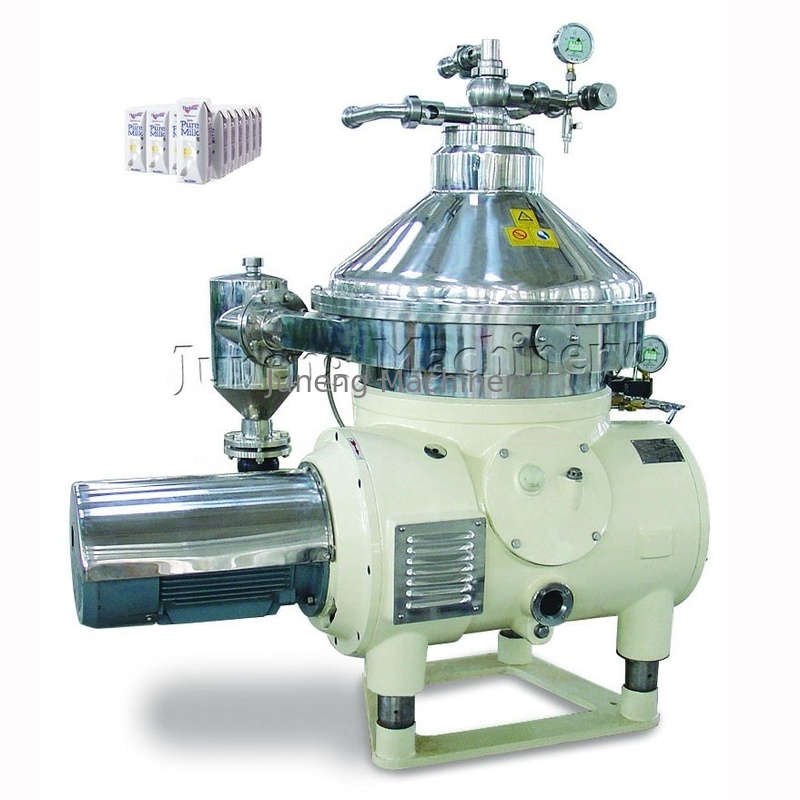

Industrial Milk Cream Separator 5000-10000L/H 15KW 220V/380V
| Lugar de origem | Jiangsu, China |
|---|---|
| Marca | Juneng |
| Certificação | CE Certificate |
| Quantidade de ordem mínima | 1 |
| Preço | $26,599-30,000 |
Contacte-me para amostras grátis e vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Tensão | 220V/380V | Poder | 15 kw |
|---|---|---|---|
| Peso | 1600 kg | Dimensões | 1800*1200*1750 mm |
| Material | SUS304/SUS316 | Capacidade | 5000-10000L/H. |
| Pressão de entrada | 0,05 MPa | Pressão de saída | 0,1-0,4 MPA |
| Energia motora | 15 kw | Componentes principais | Plc, rolamento, motor |
| Tipo de processamento | Esclarecedor | Velocidade rotativa | Alto |
| Nível de ruído | Baixo | Tipo de vedação | Completamente selado |
| Materiais para tambores | aço inoxidável | ||
| Destacar | Industrial milk cream separator machine,High-capacity milk cream separator 10000L/H,15KW electric milk cream separator |
||
Descrição de produto
Low Noise Level Skim Milk Cream Separator Machine
Product Application
DHNZ series separator adopts ring valve type automatic slag discharge, and its slag discharge action is automatically controlled by computer program and industrial control computer, which can carry out regular and quantitative slag discharge according to your setting requirements without stopping the feeding.
Main Features
- High rotating speed
- Operating stability
- Completely sealed up of the inlet and outlet system
- Lower noise
- Perfect separating effect
Technical Specifications
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
|---|---|---|---|---|---|---|
| DHNZ360 | 1000-3000 | 0.05 | 0.1-0.35 | 7.5 | 1200 | 1530*1150*1500 |
| DHNZ470 | 3000-6000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*1750 |
| DHNZ550 | 5000-10000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
| DHNZ616 | 10000-20000 | 0.1 | 0.3 | 37 | 3000 | 2185*1728*2082 |
Detailed Images
Machine Parts
Name: Disc
Brand: Juneng
Original: China
Each part of the drum is numbered before shipping, they shall not be interchanged. The disk sets are assembled in sequence on the distributor, the disks and drum cover are held on the drum body by the disk glands.
Main Parts
Name: Drum
Brand: Juneng
Original: China
The drum is a component to separate material and rotates at high speed, is the heart of the separator.
Machine Parts
Name: Shaft
Brand: Juneng
Original: China
The vertical shaft is to transmit power, is equipped with speed step-up gear (small spiral gear) and hi-speed rotating part.
The cross shaft is to transmit motor power to the vertical shaft and main parts of the drum.
Main Features
Name: Equipment Base
Brand: Juneng
Original: China
Underframe is the main part for supporting the whole separator and connecting base, all four supporting feet of the baseframe are equipped with damping rubber pads, which can isolate vibration between the separator and building very well.
Test & Inspection
- Material Test Report
- Magnetic Particle Examination
- Nondestructive Examination
- Liquid Penetrant Examination
- Dynamic Balancing Test
- Radiographic Examination
Packing & Delivery
| Packaging | |
|---|---|
| Size | be different because of different model |
| Weight | 1000kg-3000kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
| Transport | Domestic: by carborneOverseas: by sea or by air |
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- View our Factory
After-Sales Service
- Training how to instal the machine, training how to use the machine
- Engineers available to service machinery overseas
After-sales Service Technical Team
Our company has set up a professional after-sales service technical team. All sell-offs products shall have engineer to guide installation, assist debugging and train operators until they have mastered them.
If problem occurs while the equipment operation, we will immediately process it, promise to feedback within two hours after informed. After-sales service engineer shall be arranged to the site to solve the problems. He will never leave, until the user satisfaction.
Company Profile
Juneng Group
Juneng Group is a large scale manufacturer of industrial products in China. This group principally engaged with the in-house research & development as well as manufacturing of various industrial filters, separators, centrifuges and pumps.
The Company is proud to be the leader in such industry with approximately 90% domestic market share in Oils & Fats industry, Chemical industry, Pharmaceutical industry, Beverage industry, Petrol-chemical industry, and now is one of the well-known producers and suppliers in World.
The Company now has its three production bases with a total capacity of 280,000 square meters in Nanjing city and Yixing City, permanent workforces not less than 1100 people and the production line is well equipped with more than 2000 inits of advanced production equipment and test Instrumentation.
Jiangsu Juneng Machinery Co., Ltd in Yixing
We are professional in manufacturing disc separators and liquid pumps.If you would have any plan on these items,please feel free to contact us. We are happy to recommend the most suitable model for you.
Operational Tenets of Juneng Group:
- Strategy: Being professional and devoted to build up core competitiveness
- Market: European quality, Chinese price
- Mangement: practical, standard and successive improvement
- Service: honest, responsable and timely
- Talent: merits, cooperation and caring
- Technology: technology leadership
Why Choose Juneng brand
- International High quality Certification production chain
- Manufacturer, more reasonable price
- Solid technical support and after-sales service
- Exports to more than 20 countries and regions, good customers feedback
- One-top service, customised Exclusive project feasibility report
Related Products
FAQ
1) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can pick you up at airport. If you come from domestic city, air or train directly to Wuxi station. We will pick you up at railway station.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years experience, strict operation policy is performed, advanced processing machines guarangtee the precision of all components, workers with operation license, parts get multiprocessing, transmission& electrical parts are of international famous brand. Series of test and inspection are done in the whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods, but mainly accept T/T, L/C at sight.
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after commissioning.
5) Q: I haven't done business with you company before, how can I trust your company?
A: Our company has been in Alibaba.com for 10 years, which is longer than most of our fellow suppliers, we have been golden suppliers for years. What's more, we have got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough. Our Trade Assurance Limit is US$ 42,000,and it will still going up.
6) Q: What's the shipment terms and delivery time of your company?
A: Well, the delivery time depend on the quantity of your order. Usually is 20 days. For some customized machine 30 days is necessary.
7) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best price and good service at the same time.
